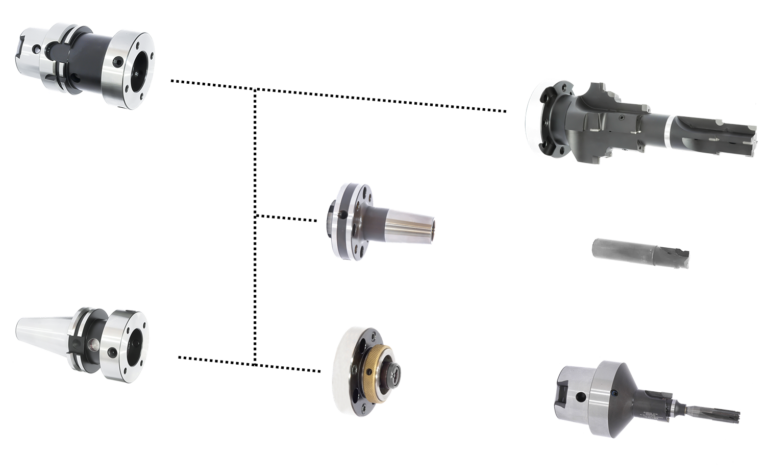

MODULAR SYSTEM

IT.TE.DI. modular systems produce advantages in time and costs. As a matter of facts, the modularity and easy replaceability, combined with the easy assembling procedure of our solutions, allow a rapid usage in the production processes with consequent resource savings. The centering modules, the HSK flange with axial and radial regulation up to the most recent HPC system, guarantee a micrometric repeatability and, therefore, a stable statistic production process for the customer. Now you can reach the highest level of acuracy and repeatability during tool change, ensuring the optimization of the process.

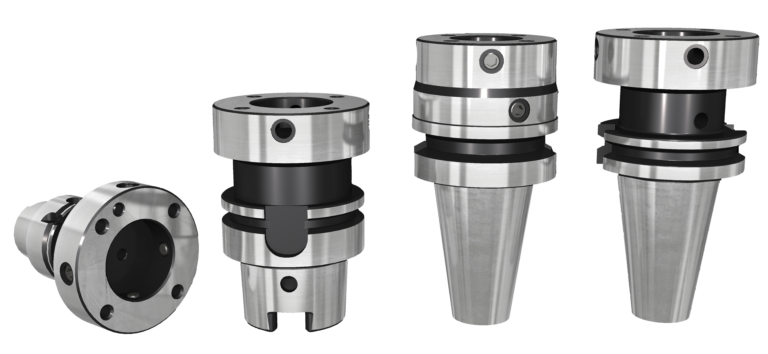

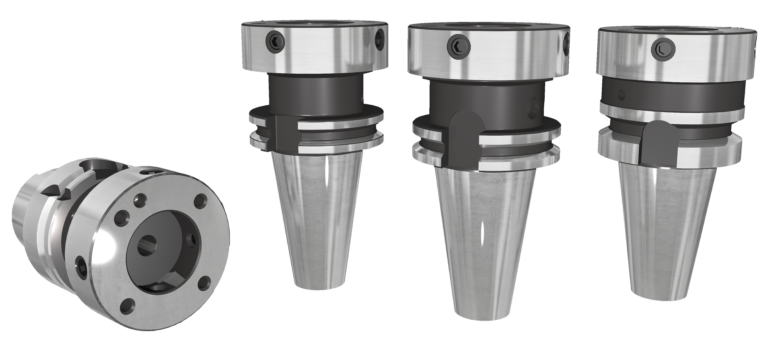

Centering Modules

Features:

  • Axial and Radial Adjustement: to adjust the tun-out of the tool regardless the machine spindle accuracy.
  • Tight tolerances during the process.
  • Precision guaranteed even if you are using a different shank from HSK.

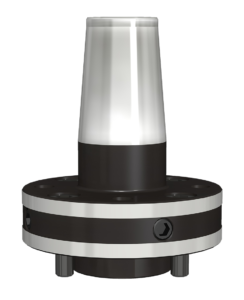

Thermal shrink Flange

Features:

  • High precision radial and axial alignement on machine spindles or alignement adaptors.
  • User friendly.
  • Balancing quality G 6.3/15.000 rev/min.
  • Shank tolerance h6.

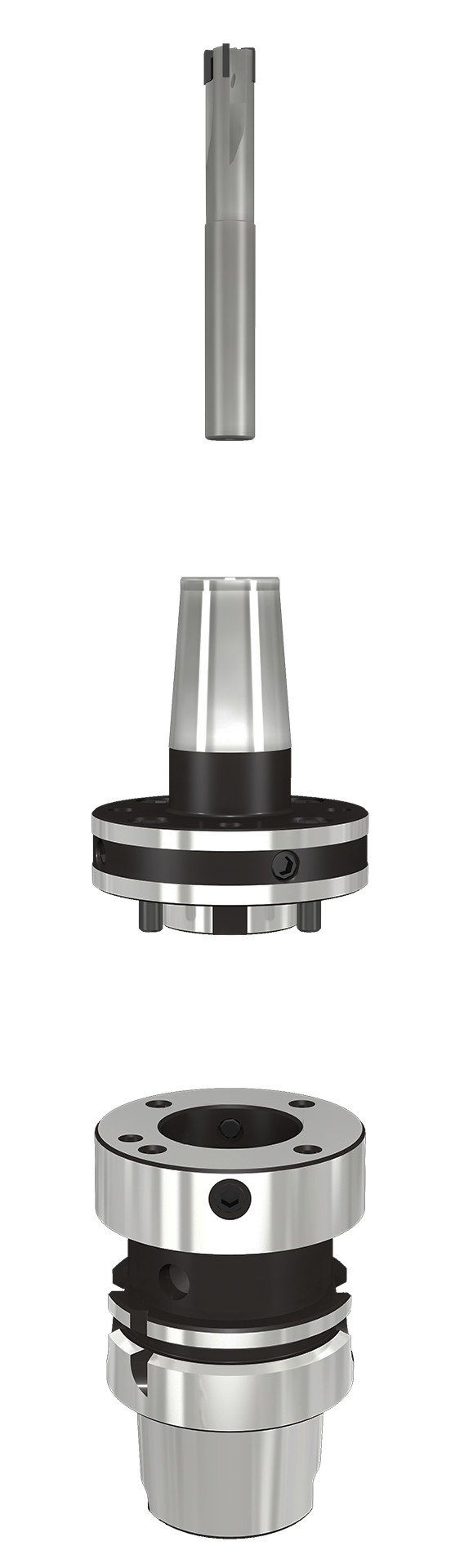

Thermal Exploded

ADAPTORS

Designed for IT.TE.DI. standard milling lines

Features:

  • Better rigidity for a superior productivity and longer tool life.
  • Higher resistance to radia efforts.
  • Larger supporting surface.
  • No coolant loss.
